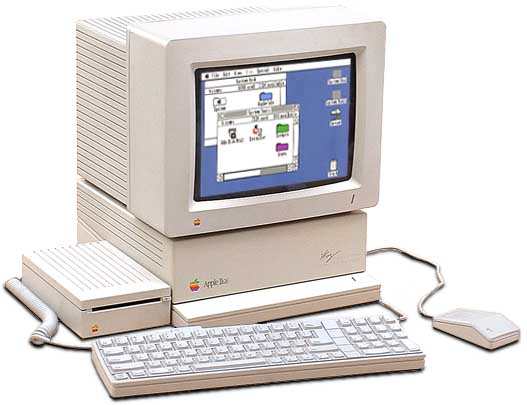

Apple IIGS
Introduced:September 1986
Discontinued:December 1992
Price:US $999 without monitor
US $1498 with RGB monitor
CPU:WDC 65C816 @ 1.0 or 2.8MHz
RAM:256K, 8Meg max
Display:text: 80 X 24 maximum
graphics: 640 X 200, 16 colors max
Ports:2 serial, ADB (Apple Desktop Bus)
External floppy port, joystick port
RGB and composite video output
Expansion:7 internal slots
Storage:External 800K 3.5-inch disk drive
OS:Apple GUI, ProDOS

Released on Apple's 10th anniversary, the first 10,000 Apple IIGS computers (GS = graphics + sound) have the signature of "Woz" on the front. Woz is Steve Wozniak, who single-handedly designed the first Apple computers, the Apple I and the Apple II.

The IIGS is a continuation of the earlier Apple II computer line, and is designed to be backwards compatible with Apple II software and hardware. The IIGS CPU even has built-in MOS 6502 emulation, which is the CPU in the Apple II line of computers.

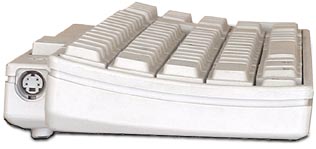

The IIGS was the first Apple computer system to utilize the Apple Desktop Bus (ADB). The ABD is a low-speed bi-directional serial bus that connects input devices, such as keyboards, mouse devices, and graphics tablets to the IIGS. It was later incorporated into the Macintosh line of computers, from the Macintosh II and up. ADB was eventually phased-out in favor of the more standardized USB (Universal Serial Bus) in the late 90's.

As the Apple with the best color graphics, the IIGS also has the best sound. It utilizes an Ensoniq sound chip, which has an entire 64K of RAM dedicated to it and is capable of playing 15 simultaneous sounds.

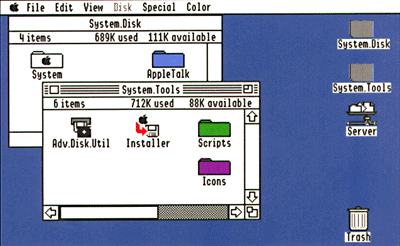

The IIGS has a GUI (graphic user interface) in 16 colors (up to 4096 colors in special graphics modes), a slow but powerful 16 bit CPU, great sound, and was loved by Apple fans everywhere. Sounds like a success - but by this time Apple was spending all its time and effort marketing the Macintosh line of computers, and the IIGS died a slow and uneventful death.

Ever since the Macintosh in 1984, Apple has focused on making small computers, sometimes too small. Few computers cost as much as a IIGS, while having no built-in floppy drive or other type of data storage.

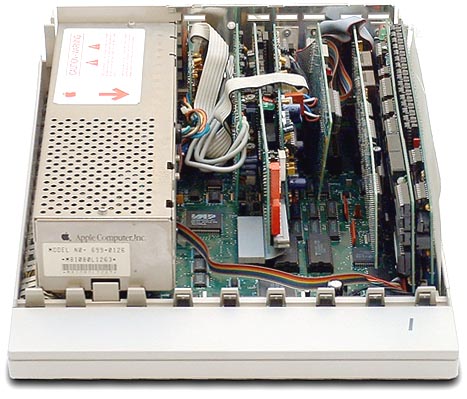

In any case, seen here is my maxed-out Apple IIGS, with barely room left for air flow!

Expansion slots from left to right:
  1. empty
  2. Computer Eyes - video digitizer, from Digital Vision Inc.
  3. Zip GSX (ver 1.0) - processor accelerator, from ZIP Technology.
  4. Sonic Blaster - stereo playback and recording card, from Applied Engineering.
  5. Apple II 3.5 disk controller, from Apple.
  6. empty
  7. Apple II High Speed SCSI card, from Apple.
  8. RAMkeeper, from Applied Engineering with GS-RAM Plus memory card.

Easter Egg: The IIGS with ROM version 3 has an audio recording built-in. Upon booting, when you see the "Open Apple" move back and forth on the screen, press <Control> <Open Apple> <Option> <N>. You will hear the IIGS design team shouting "Apple 2". Apple Museum has an actual sound sample on their IIGS page that you can listen to.

On older sytems with ROM version 1, you will see developers credits.
